Tungsten Carbide Mold

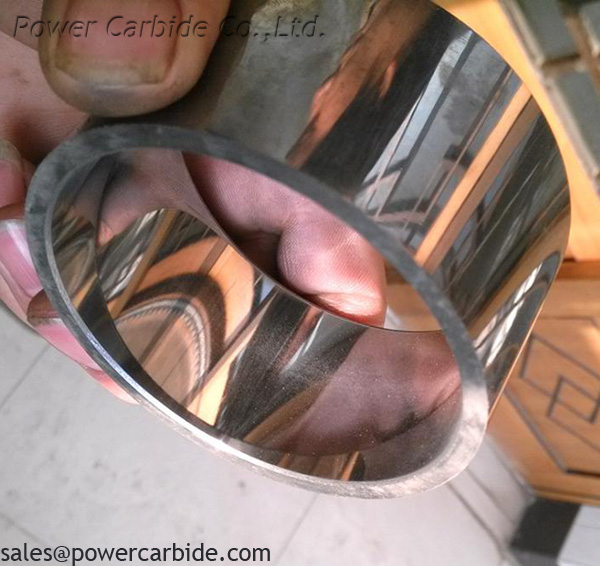

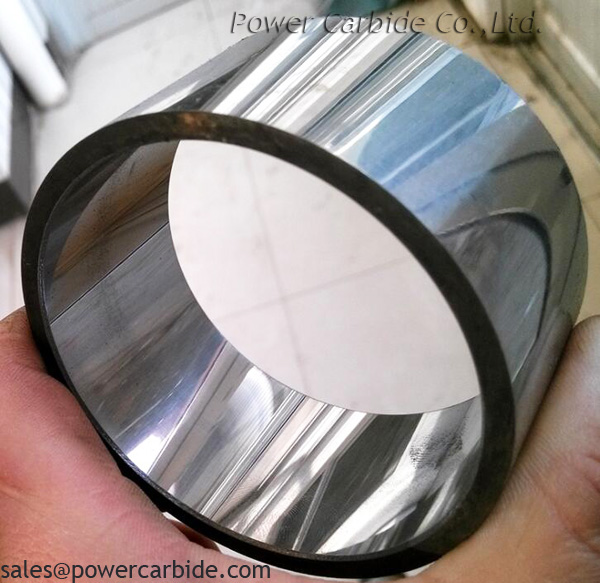

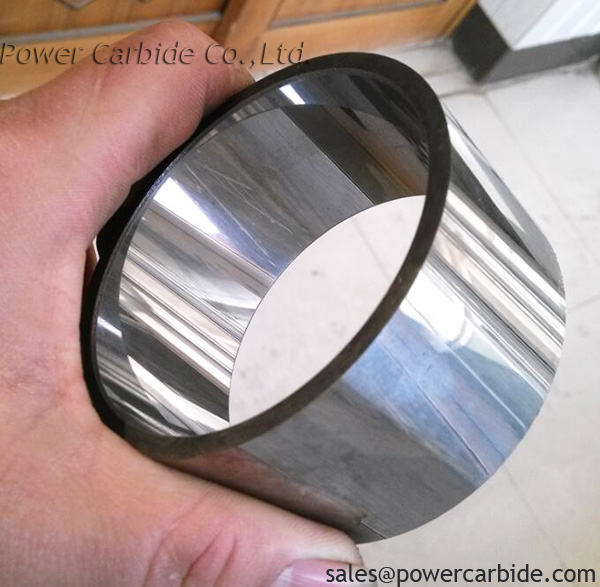

Tungsten carbide bearing bushings & sleeves

Grade: YG11, YG15, YG20, YG16C, YG20C, YG22C, YG25C
Carbide mould range:wire drawing dies, cold forging/forming/heading dies, stamping die, streaching die, punching die

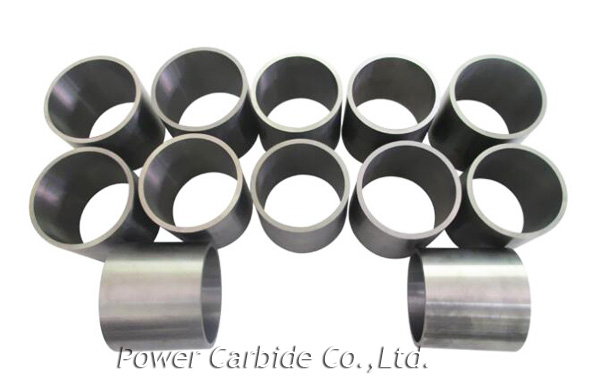

Product description: We offer standard and custom disigned tungsten carbide bushings and sleeves in precesion finish and longer lasting time.
INQUIRY

Grade for tungten carbide bushing

Grades	Density g/cm3	T.R.S MPa	Hardness HRA	Performance & application recommended
YG11	14.4	2600	88.5	Forming or stamping dies for metal powders and nonmetal powders.
YG15	14.0	2800	87.5	For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching、stamping、forging tools under large stress.
YG20	13.5	3200	85.5	For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG16C	13.9	2900	85.5	Impact resistance forging dies.
YG18C	13.7	3100	84.5	Impact resistance forging dies, hot-press forging dies and rollers.
YG20C	13.5	3300	83.5	Dies for wear resistant or impact resistant application.
YG22C	13.3	3500	83.0	Nut forming dies and high impact resistance forging dies.
YG25C	13.1	3600	82.5	Stainless bolt header dies and rollers.
