Carbide Circular Blades

Tungsten Carbide Corrugated board Blades

Tungsten Carbide Corrugated board Blades

Sizes:Φ230*Φ110*1.3,Φ220*Φ115*1.0-3,Φ260*Φ140*1.5,Φ300*Φ112*1.2
Material:High quality tungsten carbide
High precision surface and cutting edges
Application: For corrugated paperboard industry
Product description: We produce a wide ranges of tungsten carbide industrial blades and knives, including corruated cardboad blades, tobacco knives, paper slitter knives, packaging slitting blades.
INQUIRY

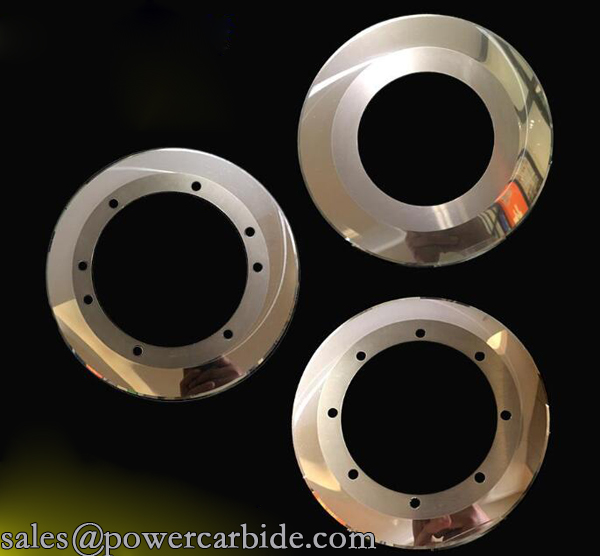

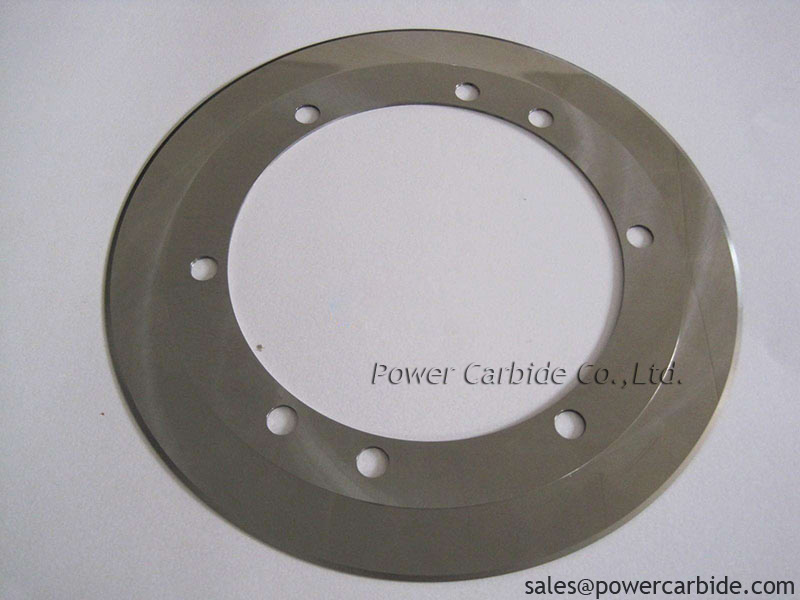

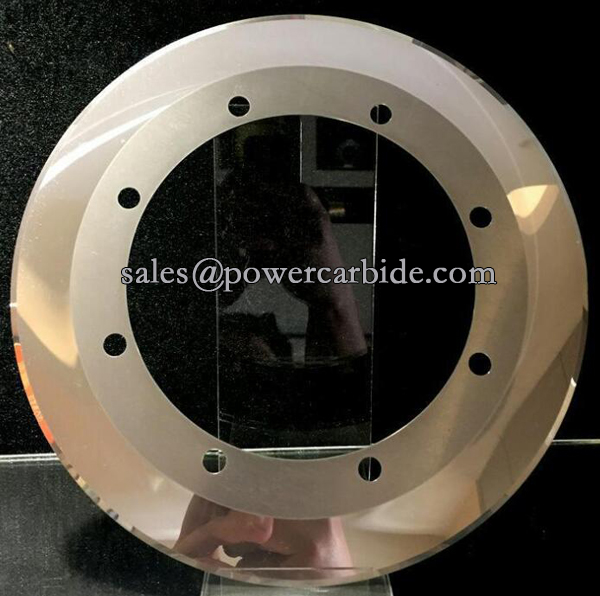

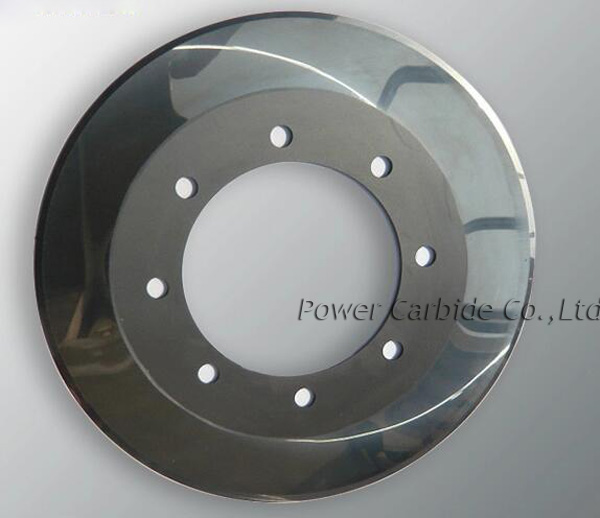

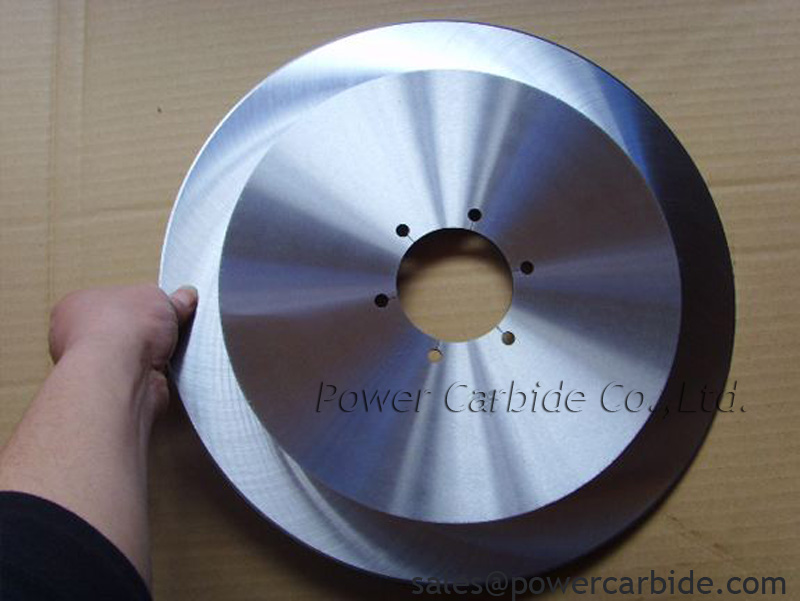

Tungsten carbide corrugated board cutting blades

Tungsten carbide circular knives for the corrugated board

Carbide circular slitting blades for corruated carton box/corrugated paper

Carbide slitting knives for paper tubes

We provide tungsten carbide corruated cardboard slitting blades for many brand machines including BHS, Agnati , Fosber , Marquip, Mitsubishi, MHI, Isowa, Gopfert, Mingwei, Peters and so on.

Some sizes optional:

Dimension(mm)	OD(mm)	ID(mm)	Thickness(mm)	Machine Brand
Φ300Φ1121.2	Φ300	Φ112	1.2	TCY
Φ291Φ2031.1	Φ291	Φ203	1.1	FOSBER
Φ280Φ2021.4	Φ280	Φ202	1.4	Mitsubishi
Φ280Φ1601.0	Φ280	Φ160	1.0	Mitsubishi
Φ280Φ1681.4	Φ280	Φ168	1.4	K&M
Φ260Φ168.31.2	Φ260	Φ168	1.2	Marquip
Φ260Φ1401.5	Φ260	Φ140	1.5	lsowa
Φ265Φ1121.4	Φ265	Φ112	1.4	Oranda
Φ260Φ1121.4	Φ260	Φ112	1.4	Oranda
Φ260Φ168.271.2	Φ260	Φ168.27	1.2	Hooper/Simon
Φ250Φ1500.8	Φ250	Φ150	0.8	Peters
Φ244Φ2221.0	Φ244	Φ222	1.0	Hooper
Φ240.18Φ31.921.14	Φ240.18	Φ31.92	1.14	BHS
Φ240Φ321.2	Φ240	Φ32	1.2	BHS
Φ240Φ1151.0	Φ240	Φ115	1.0	Agnati
Φ230Φ1101.1	Φ230	Φ110	1.1	FOSBER
Φ230Φ1351.1	Φ230	Φ135	1.1	FOSBER
