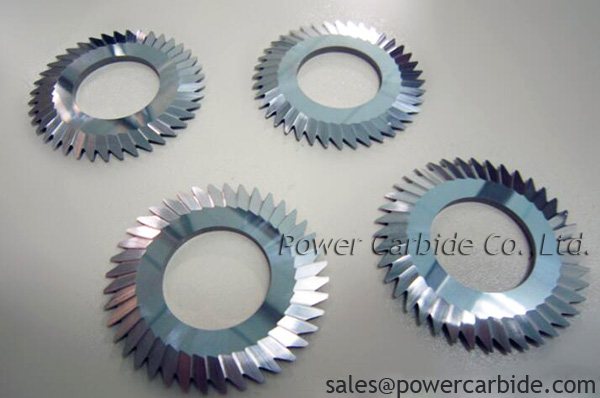

Tungsten Carbide PCB Board V-CUT Blades

Tungsten carbide Circuit board cutter, PCB board Blades, carbide V-cut blades, V Groove Cutter, PCB V-grooving, V- slotting,V-scoring, V cut blades
Sizes: 8 inch Φ200×Φ70×3.5,10inch Φ250×Φ70×3.5, customized
Application: CNC-scoring, V-cut machines
Product description: We manufacture tungsten carbide PCB Board V-CUT Blades in precision finish, sharp edges and highest quality for PCB industry.
INQUIRY

Tungsten carbide V-CUT blades have the advantage of high finish, sharp edge and high wear resistance. The service life is 20 to 150 times higher than that of alloy tool steel,which can greatly reduce the number of frequent tool change and improve the production efficiency, without chipping and curling. The PCB (circuit board) processed by the solid carbide V-CUT blades has a high surface finish and no burrs, which can significantly improve the quality of the PCB board. It is a cutting tool commonly used by PCB manufacturers to cut printed circuit boards.

Our PCB board cutter blades are suitable for Accuscore, Anita, Avalon, Filotec, Loehr&Herrmann and Telmec, Banaby and Mania-testerion(JWA) machine.

Brand	OD	ID	Thickness	No.Teeth	Angle	Angle	Angle	Angle	Angle	Material
Anita	100	40	2	100	20	30	45	60	90	Carbide V Scoring Blades
Accuscore	101.6	25.4	2.0	100	20	30	45	60	90	Carbide V Scoring Blades
Filotec	100	22	2.0	100	20	30	45	60	90	Carbide V Scoring Blades
Avalon	100	40	2.0	100	20	30	45	60	90	Carbide V Scoring Blades
Loehr&Herrmann	100	40	2.0	100	20	30	45	60	90	Carbide V Scoring Blades
Telmec	100	40	2.0	100	20	30	45	60	90	Carbide V Scoring Blades
