Carbide Rods & Endmills

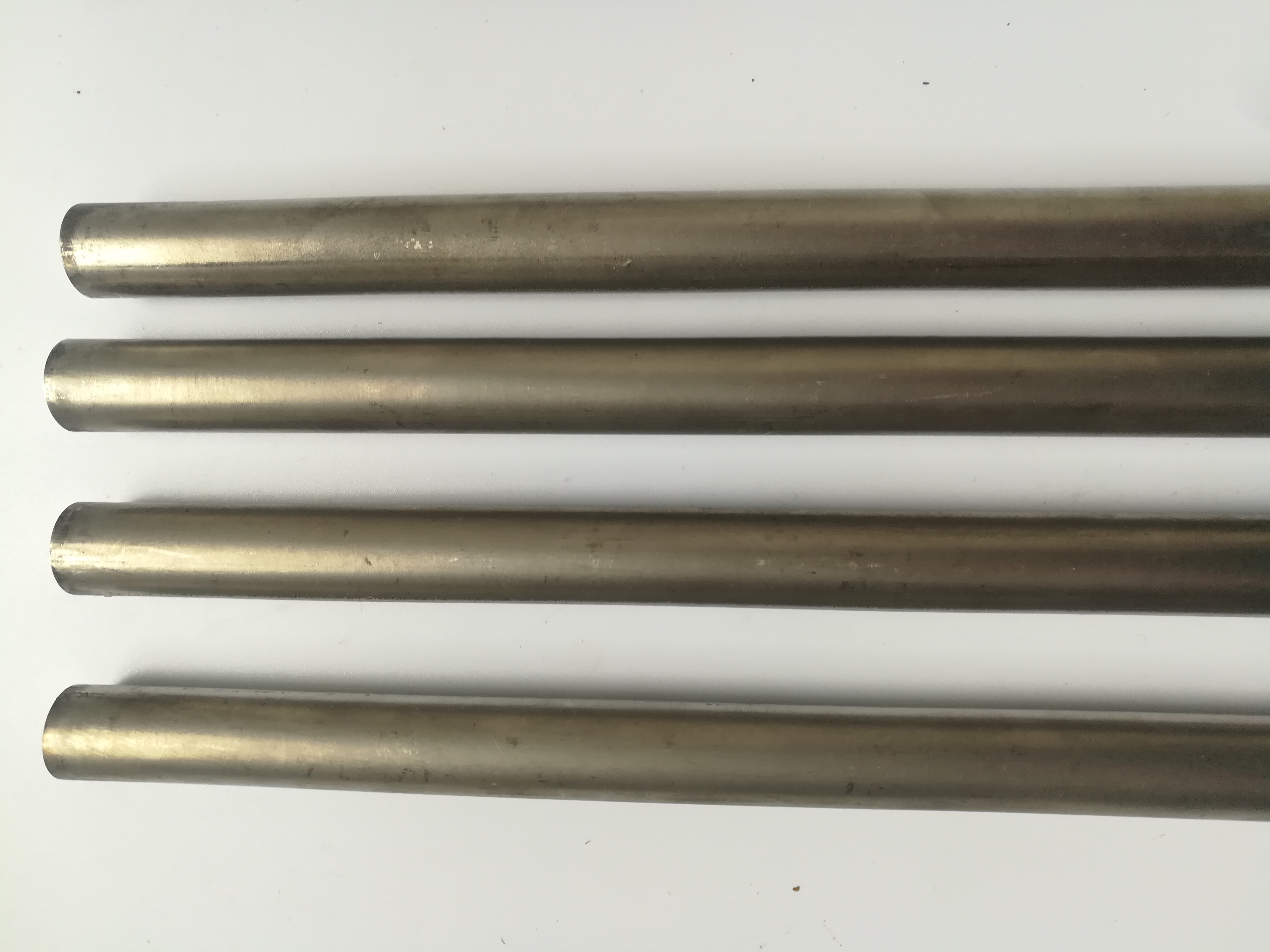

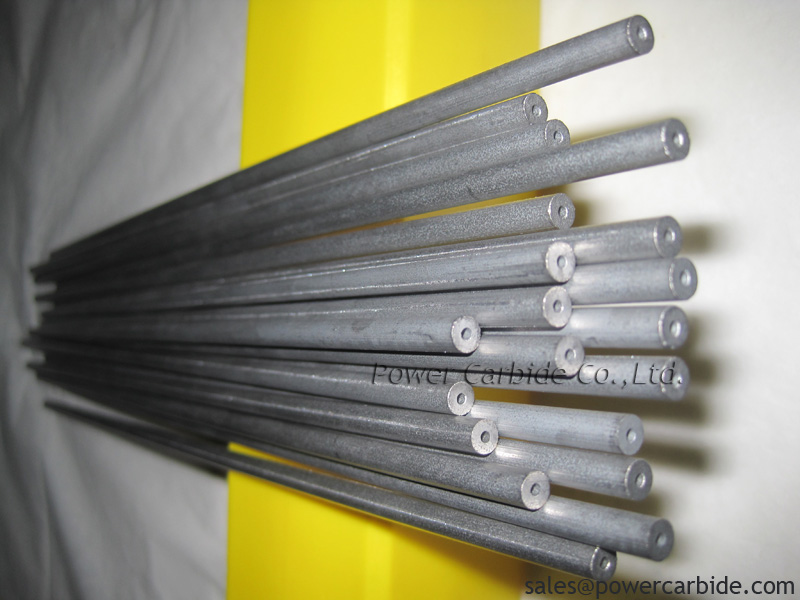

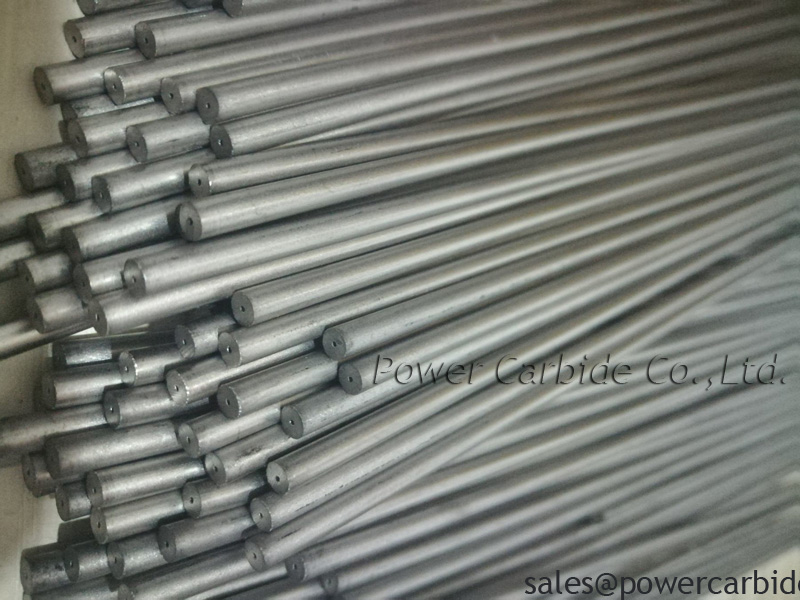

Unground carbide rods(as sintered/blanks)
- Standard sizes: Dia.3,4,5,6,8,10,12,14,16,18,20x330mmL
- Grade: ISO K10, K20, K30, K40/YG6, YG6X, YG8, YL10.2, YU12
- Surface: Unground/as sintered/Blanks
- Application: for endmill, drills, reamers making
- Product description: We produce unground/sintered tungsten solid carbide rods in high quality raw material, mainly in 10% and 12% cobalt content and enough grinding allowance.
|
D Unground (mm) |
TOL (mm) |
L (mm) |
|
3.2 |
+0.20 |
330 |
|
3.7 |
+0.20 |
330 |
|
4.2 |
+0.20 |
330 |
|
4.7 |
+0.20 |
330 |
|
5.2 |
+0.20 |
330 |
|
5.7 |
+0.25 |
330 |
|
6.2 |
+0.25 |
330 |
|
6.7 |
+0.25 |
330 |
|
7.2 |
+0.25 |
330 |
|
7.7 |
+0.25 |
330 |
|
8.2 |
+0.30 |
330 |
|
8.7 |
+0.30 |
330 |
|
9.2 |
+0.30 |
330 |
|
9.7 |
+0.30 |
330 |
|
10.2 |
+0.30 |
330 |
|
10.7 |
+0.30 |
330 |
|
11.2 |
+0.35 |
330 |
|
11.7 |
+0.35 |
330 |
|
12.2 |
+0.35 |
330 |
|
12.7 |
+0.45 |
330 |
|
13.2 |
+0.45 |
330 |
|
13.7 |
+0.45 |
330 |
|
14.2 |
+0.50 |
330 |
|
14.7 |
+0.50 |
330 |
|
15.2 |
+0.50 |
330 |
|
15.7 |
+0.50 |
330 |
|
16.2 |
+0.50 |
330 |
|
16.7 |
+0.50 |
330 |
|
17.2 |
+0.50 |
330 |
|
D Unground (mm) |
TOL (mm) |
L (mm) |
|
17.7 |
+0.50 |
330 |
|
18.2 |
+0.60 |
330 |
|
18.7 |
+0.60 |
330 |
|
19.2 |
+0.60 |
330 |
|
19.7 |
+0.60 |
330 |
|
20.2 |
+0.60 |
330 |
|
20.7 |
+0.60 |
330 |
|
21.2 |
+0.60 |
330 |
|
21.7 |
+0.60 |
330 |
|
22.2 |
+0.60 |
330 |
|
22.7 |
+0.60 |
330 |
|
23.2 |
+0.60 |
330 |
|
23.7 |
+0.60 |
330 |
|
24.2 |
+0.70 |
330 |
|
24.7 |
+0.70 |
330 |
|
25.2 |
+0.70 |
330 |
|
25.7 |
+0.70 |
330 |
|
26.2 |
+0.70 |
330 |
|
27.2 |
+0.70 |
330 |
|
28.2 |
+0.70 |
330 |
|
29.2 |
+0.70 |
330 |
|
30.2 |
+0.70 |
330 |
|
31.2 |
+0.70 |
330 |
|
32.2 |
+0.70 |
330 |
|
33.2 |
+0.80 |
330 |
|
34.2 |
+0.80 |
330 |
|
35.2 |
+0.80 |
330 |
|
36.2 |
+0.80 |
330 |
|
38.2 |
+0.80 |
330 |
|
40.2 |
+0.80 |
330 |
