Carbide Strip & Plate

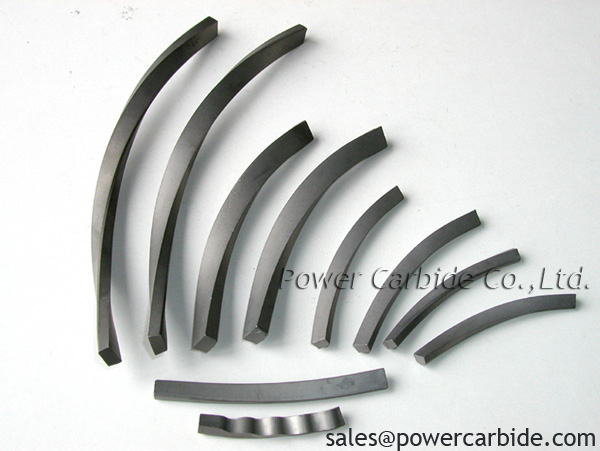

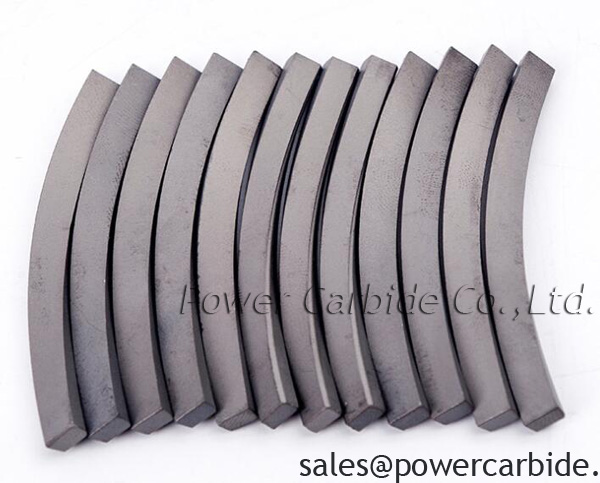

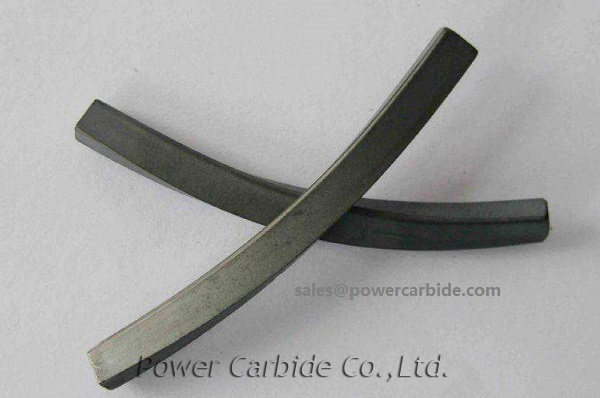

Tungsten Carbide Spiral/Helix Strips and Tips
- Grade: K10, K20, K30, K40
- Cutting Edge Diameter Scope: D7.0mm --D200.0mm
- Helix Angle Scope: 5°-- 40°
- Axial Length Scope: 15.0mm-- 150.0mm
- Product description: We are direct manufacturer for various sizes of tungsten carbide spiral strips in grade K10 K20 etc as per your requirements.

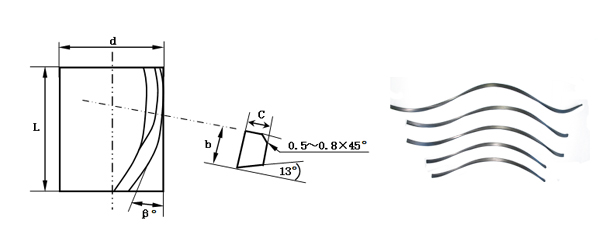

Tungsten Carbide Spiral/Helical Strips and Tips
D
Tol
L
Tol
βo
Tol
a
Tol
b
Tol
mm
mm
mm
mm
mm
mm
mm
mm
28.0
+0.80～1.0
310
+3.0～+6.0
30o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
30.0
+0.80～1.0
310
+3.0～+6.0
30o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
32.0
+0.80～1.0
310
+3.0～+6.0
30o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
36.0
+0.80～1.0
310
+3.0～+6.0
30o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
40.0
+1.0～1.40
310
+3.0～+6.0
30o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
45.0
+1.0～1.40
310
+3.0～+6.0
30o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
50.0
+1.0～1.40
310
+3.0～+6.0
30o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
63.0
+1.0～1.40
310
+3.0～+6.0
30o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
28.0
+0.80～1.0
310
+3.5～+7.5
45o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
30.0
+0.80～1.0
310
+3.5～+7.5
45o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
32.0
+0.80～1.0
310
+3.5～+7.5
45o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
36.0
+0.80～1.0
310
+3.5～+7.5
45o
±1o
5.5
-0.15～0.25
3.3
-0.15～0.25
40.0
+1.0～1.40
310
+3.5～+7.5
45o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
45.0
+1.0～1.40
310
+3.5～+7.5
45o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
50.0
+1.0～1.40
310
+3.5～+7.5
45o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
63.0
+1.0～1.40
310
+3.5～+7.5
45o
±1o
6.5
-0.15～0.25
3.5
-0.15～0.25
Application:
