Carbide Strip & Plate

Tungsten Carbide Strips

Sizes: STB strips and all other sizes available
Grade: K10, K20, K30
Surface treatment: sintered, precision grinding
Product description: We manufacture tungsten carbide strips in blanks and precision grounded surface, strips with angle, spiral strips, STB strobe strips for the cutting of wood, rubber, plastic, metal etc.
INQUIRY

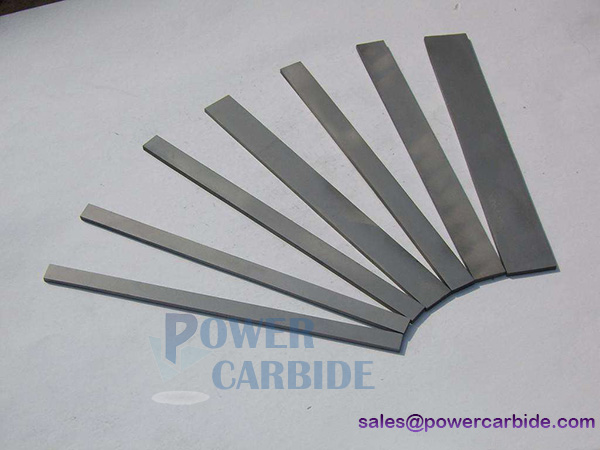

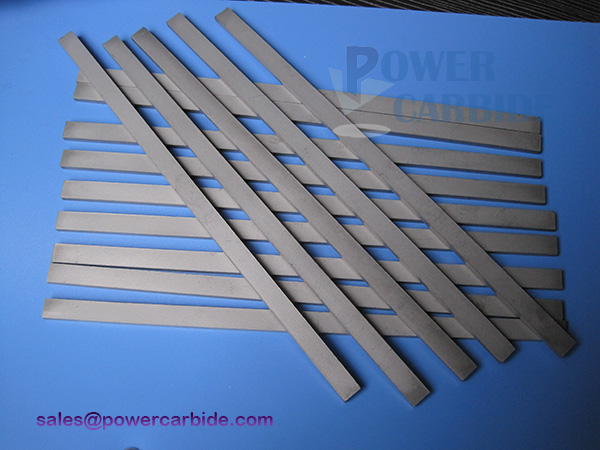

Tungsten Carbide Strips Blanks

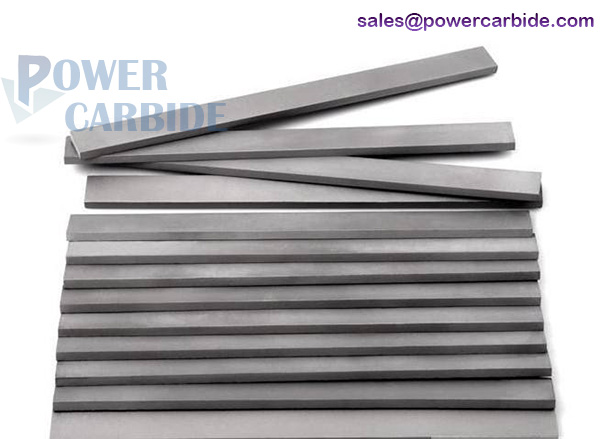

tungsten carbide strips in 310mm/330mm

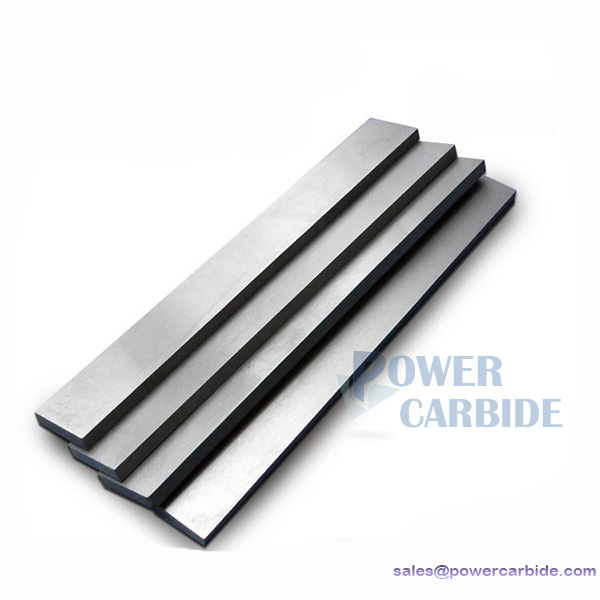

precision grounded tungsten carbide strips

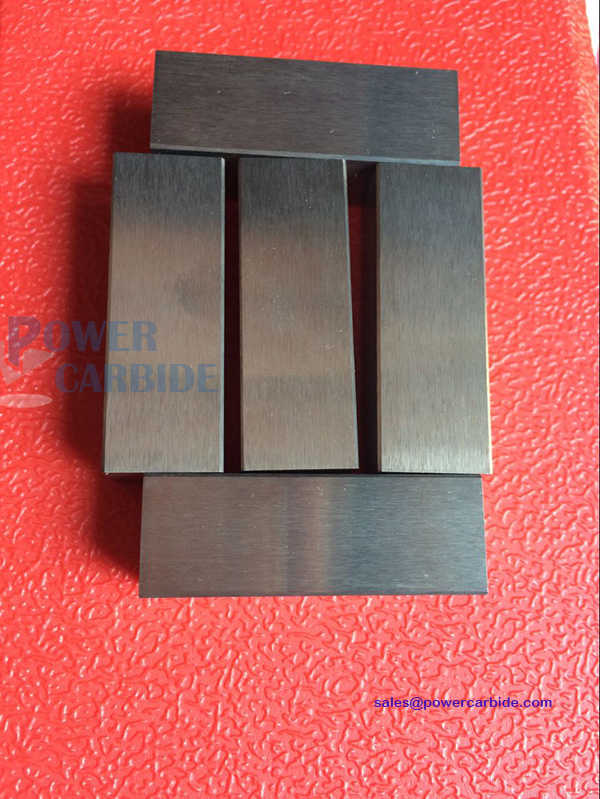

Precision Grounded Carbide Strips

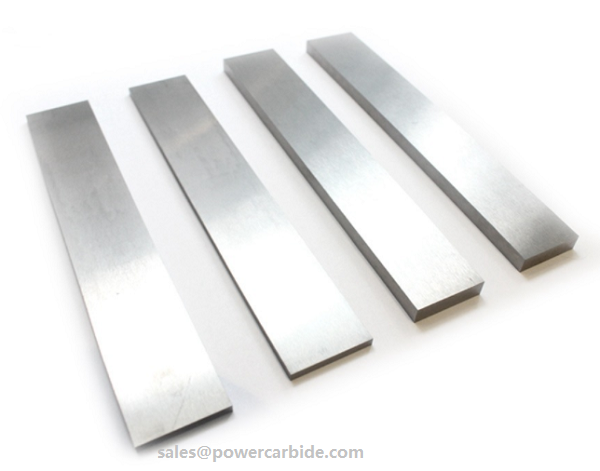

grinded cemented carbide strips

Carbide Grade for Tungsten carbide Strips

Grade	Cobalt Content %	Density g/cm3	Hardness HRA
YG8	8	14.80	89.5
YG6	6	14.95	90.5
YG6X	6	14.95	91.5
YL10.2	10	14.50	91.8
YG13X	13	14.30	89.5
YG15	15	14.00	87.5

Some Common Sizes for Tungsten Carbide Strips

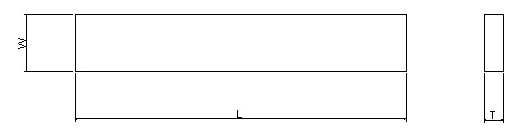

standard Tungsten carbide strips

T	W	L
MM	MM	MM
3	10	330
3	15	330
3	20	330
4	5	330
4	6	330
4	8	330
4	10	330
4	12	330
4	14	330
4	16	330
4	18	330
4	20	330
4	25	330
4	30	330

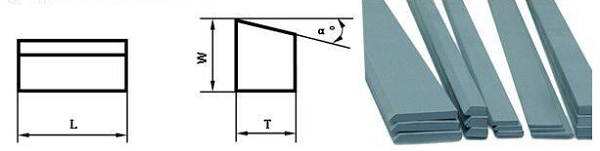

Tungsten Carbide Strips with Angle

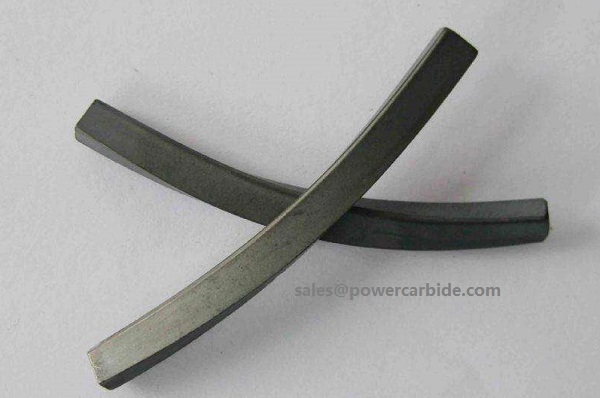

Tungsten Carbide Spiral Strips

Tungsten Carbide STB Blanks, Strobe Blanks

STB Types	T (mm)	W (mm)	L (mm)	T (Inch)	W (Inch)	L (Inch)
STB-12	0.8	1.6	25.4	1/32	1/16	1
STB13	1.2	2.4	25.4	3/64	3/32	1
STB-13A	1.2	2.4	20.6	3/64	3/32	13/16
STB-24A	1.6	3.2	25.4	1/16	1/8	1
STB24B	1.6	3.2	76.2	1/16	1/8	3
STB24C	1.6	3.2	31.8	1/16	1/8	1 1/4
STB26A	1.6	4.8	25.4	1/16	3/16	1
STB-26C	1.6	4.8	76.2	1/16	3/16	3
STB-28A	1.6	6.4	25.4	1/16	1/4	1
STB-28B	1.6	6.4	31.8	1/16	1/4	1 1/4
STB-28D	1.6	6.4	76.2	1/16	1/4	3
STB-14	2.0	3.2	28.6	5/64	1/8	1 1/8
STB-34	2.4	3.2	127.0	3/32	1/8	5
STB-36	2.4	4.8	28.6	3/32	3/16	1 1/8
STB-36A	2.4	4.8	31.8	3/32	3/16	1 1/4
STB-38A	2.4	6.4	25.4	3/32	1/4	1
STB-38B	2.4	6.4	38.1	3/32	1/4	1 1/4
STB-38D	2.4	6.4	127.0	3/32	1/4	5
STB-310A	2.4	7.9	50.8	3/32	5/16	2
STB-310B	2.4	7.9	76.2	3/32	5/16	3
STB-310C	2.4	7.9	127.0	3/32	5/16	5
STB-312	2.4	9.5	127.0	3/32	3/8	5
STB-46	3.2	4.8	152.4	1/8	3/16	6
STB-48A	3.2	6.4	25.4	1/8	1/4	1
STB-48B	3.2	6.4	31.8	1/8	1/4	1 1/4
STB-48C	3.2	6.4	57.2	1/8	1/4	2 2/4
STB-48D	3.2	6.4	76.2	1/8	1/4	3
STB-48E	3.2	6.4	152.4	1/8	1/4	6
STB-410	3.2	7.9	152.4	1/8	5/16	6
STB410A	3.2	7.9	38.1	1/8	5/16	1 1/2
STB410B	3.2	7.9	76.2	1/8	5/16	3
STB412A	3.2	9.5	50.8	1/8	3/8	2
STB-412B	3.2	9.5	76.2	1/8	3/8	3
STB-412C	3.2	9.5	152.4	1/8	3/8	6
STB-412D	3.2	9.5	25.4	1/8	3/8	1
STB-416	3.2	12.7	152.4	1/8	1/2	6
STB-416A	3.2	12.7	25.4	1/8	1/2	1
STB-416B	3.2	12.7	38.1	1/8	1/2	1 1/2
STB-416C	3.2	12.7	76.2	1/8	1/2	3
STB-68	4.8	6.4	152.4	3/16	1/4	6
STB-68A	4.8	6.4	76.2	3/16	1/4	3
STB-610	4.8	7.9	152.4	3/16	5/16	6
STB-610A	4.8	7.9	76.2	3/16	5/16	3
STB-612	4.8	9.5	152.4	3/16	3/8	6
STB-612A	4.8	9.5	76.2	3/16	3/8	3
STB-616	4.8	12.7	152.4	3/16	1/2	6
STB-616A	4.8	12.7	76.2	3/16	1/2	3
STB-620	4.8	15.9	152.4	3/16	5/8	6
STB-620A	4.8	15.9	76.2	3/16	5/8	3
STB-812	6.4	9.5	152.4	1/4	3/8	6
STB-812A	6.4	9.5	76.2	1/4	3/8	3
STB-816	6.4	12.7	152.4	1/4	1/2	6
STB-816A	6.4	12.7	76.2	1/4	1/2	3
STB-820	6.4	15.9	152.4	1/4	5/8	6
STB-820A	6.4	15.9	76.2	1/4	5/8	3
STB-824	6.4	19.1	152.4	1/4	3/4	6
STB-824A	6.4	19.1	76.2	1/4	3/4	3
