Carbide Saw Tips & Blades

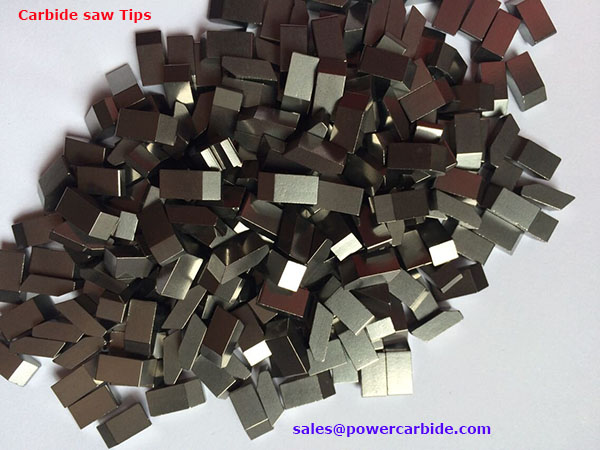

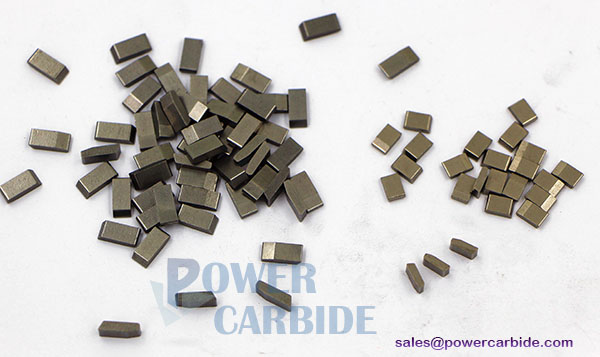

Tungsten Carbide Saw Tips
- Type and sizes: USA standard, Europe standard, JA, JX series, 10.5x4.5x3.5, 10.5x5.0x3.5...
- Produced in high quality tungsten carbide material and suitable carbide grade for specific applications
- Excellent performance with High strenth, toughness, hardness
- Product description: We are leading manufacturer for tungsten carbide saw tips in a wide sizes for wood, glass and metal cutting.Email: Sales@powercarbide.com
Carbide Saw Tips for tct saw blade
Contact here:sales@powercarbide.com

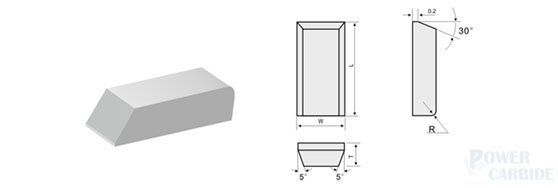

Carbide Saw Tips of USA standard
|
Type |
Dimension（mm/inc） |
||
|
L |
T |
W |
|
|
WA8065~WA8215 |
6.35(0.250) |
1.65~5.46(0.065~0.215) |
1.57(0.062) |
|
WB8085~WB8312 |
7.14(0.281) |
2.16~7.92(0.085~0.312) |
1.98(0.078) |
|
WC8100~WC8250 |
7.14(0.281) |
2.54~6.35(0.100~0.250) |
2.36(0.093) |
|
WD8100~WD8312 |
7.92(0.312) |
2.54~7.92(0.100~0.312) |
2.36(0.093) |
|
WD8150~WE8375 |
9.53(0.375) |
3.81~9.53(0.150~0.375) |
2.36(0.093) |
|
WF8150~WF8750 |
12.70(0.500) |
3.81~9.53(0.150~0.375) |
3.18(0.125) |
|
WG8150~WG8750 |
9.53(0.375) |
3.81~19.05(0.150~0.750) |
3.18(0.125) |
|
WH8125~WH8300 |
8.74(0.344) |
3.18~7.62(0.125~0.300) |
3.18(0.125) |
|
WQ8170~WQ8375 |
9.53(0.375) |
4.32~9.53(0.170~0.375) |
3.96(0.156) |
Carbide Saw Tips of USA standard
|
Type |
Dimension（mm/inc） |
||
|
L |
T |
W |
|
|
WA7065~WA7215 |
6.35(0.250) |
1.65~5.46(0.065~0.215) |
1.57(0.062) |
|
WB7085~WB7312 |
7.14(0.281) |
2.16~7.92(0.085~0.312) |
1.98(0.078) |
|
WC7100~WC7250 |
7.14(0.281) |
2.54~6.35(0.100~0.250) |
2.36(0.093) |
|
WD7100~WD7312 |
7.92(0.312) |
2.54~7.92(0.100~0.312) |
2.36(0.093) |
|
WE7150~WE7375 |
9.53(0.375) |
3.81~9.53(0.150~0.375) |
2.36(0.093) |
|
WF7150~WF7750 |
12.70(0.500) |
3.81~9.53(0.150~0.375) |
3.18(0.125) |
|
WG7150~WG7750 |
9.53(0.375) |
3.81~19.05(0.150~0.750) |
3.18(0.125) |
|
WH7125~WH7300 |
8.74(0.344) |
3.18~7.62(0.125~0.300) |
3.18(0.125) |
|
WQ7170~WQ7375 |
9.53(0.375) |
4.32~9.53(0.170~0.375) |
3.96(0.156） |
Carbide Saw Tips of USA standard
|
Type |
Dimension（mm/inc） |
||
|
L |
T |
W |
|
|
WDC7125~WDC7312 |
7.92(0.312) |
3.18~7.92(0.125~0.312) |
2.36(0.093) |
|
WEC7150~WEC7375 |
9.53(0.375) |
3.18~9.53(0.150~0.375) |
2.36(0.093) |
|
WFC7410~WFC7687 |
12.70(0.500) |
3.56~17.45(0.140~0.687) |
3.18(0.125) |
|
WGC7150~WGC7312 |
9.53(0.375) |
3.81~7.92(0.150~0.312) |
3.18(0.125) |
|
WHC7110~WHC7300 |
8.74(0.344) |
2.79~7.62(0.110~0.300) |
3.18(0.125) |

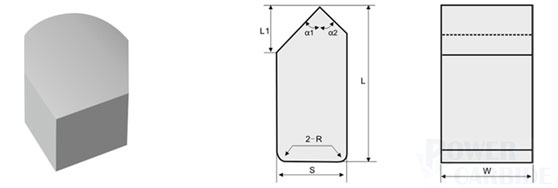

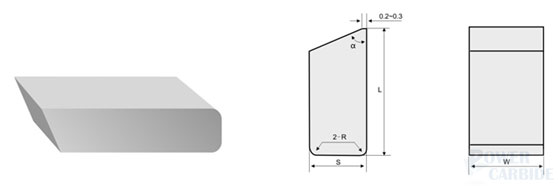

Series of JA Carbide Saw Tips
|
Type |
Dimension（mm） |
||||
|
L |
S |
αo |
βo |
R |
|
|
JA5520060 |
5.5 |
2.0 |
35 |
42 |
0.60 |
|
JA6020100 |
6.0 |
2.0 |
30 |
40 |
1.00 |
|
JA6022070 |
6.0 |
2.2 |
30 |
40 |
0.70 |
|
JA6518065-1 |
6.5 |
1.8 |
30 |
60 |
0.65 |
|
JA6518065-2 |
6.5 |
1.8 |
30 |
50 |
0.65 |
|
JA6520100 |
6.5 |
2.0 |
31 |
46 |
1.00 |
|
JA652031015/1 |
6.5 |
2.03 |
30 |
40 |
1.015 |
|
JA652031015/2 |
6.5 |
2.03 |
30 |
40 |
1.015 |
|
JA6523090 |
6.5 |
2.3 |
30 |
45 |
0.90 |
|
JA6525060 |
6.5 |
2.5 |
36 |
45 |
0.60 |
|
JA6525125 |
6.5 |
2.5 |
32 |
40 |
1.25 |
|
JA6825125 |
6.8 |
2.5 |
32 |
32 |
1.25 |
|
JA7022110 |
7.0 |
2.2 |
44 |
44 |
1.10 |

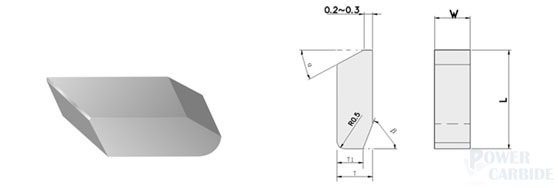

Carbide Saw Tips of Europe standard
|
Type |
Dimension（mm） |
|||||
|
L |
T |
W |
T1 |
αo |
βo |
|
|
45752 |
4.5 |
1.5 |
W |
0.7 |
28 |
45 |
|
28601 |
5.0 |
1.5 |
W |
1.0 |
28 |
45 |
|
25720 |
5.5 |
1.5 |
W |
1.0 |
30 |
45 |
|
25375 |
6.0 |
1.8 |
W |
1.2 |
28 |
45 |
|
25374 |
6.0 |
2.0 |
W |
1.4 |
28 |
45 |
|
25376 |
6.5 |
2.0 |
W |
1.4 |
28 |
45 |
|
25377 |
7.0 |
2.0 |
W |
1.2 |
28 |
45 |
|
29984 |
7.0 |
2.2 |
W |
1.8 |
28 |
70 |
|
7601 |
7.5 |
2.0 |
W |
1.2 |
28 |
45 |
|
34471 |
8.0 |
2.3 |
W |
1.5 |
28 |
56 |
|
9222 |
8.5 |
2.5 |
W |
1.25 |
28 |
45 |
|
47784 |
8.5 |
3.5 |
W |
2.0 |
25 |
65 |
|
24466 |
9.0 |
2.5 |
W |
1.46 |
20 |
57 |
|
24467 |
10.0 |
2.5 |
W |
1.6 |
20 |
67 |
|
31591 |
10.0 |
3.0 |
W |
1.6 |
15 |
72 |
|
9218 |
10.5 |
2.5 |
W |
1.3 |
28 |
45 |
|
7961 |
10.5 |
3.0 |
W |
1.7 |
30 |
50 |
|
18276 |
10.5 |
3.5 |
W |
2.4 |
25 |
45 |
|
19975 |
12.0 |
3.5 |
W |
2.4 |
30 |
45 |
|
24150 |
12.5 |
4.0 |
W |
2.7 |
30 |
70 |
|
18246 |
13.0 |
5.0 |
W |
3.3 |
35 |
45 |
|
9201 |
13.5 |
4.0 |
W |
2.7 |
25 |
0 |
Series of JP Carbide Saw Tips
|
Type |
Dimension（mm） |
||||
|
L |
S |
αo |
R |
γo |
|
|
JP3415560055 |
3.4 |
1.55 |
60 |
0.55 |
|
|
JP44517760050 |
4.45 |
1.77 |
60 |
0.50 |
|
|
JP471357020050 |
4.7 |
1.3 |
57 |
0.20,0.50 |
|
|
JP481360050 |
4.8 |
1.3 |
60 |
0.50 |
|
|
JP481660050 |
4.8 |
1.6 |
60 |
0.50 |
|
|
JP501562050 |
5.0 |
1.5 |
62 |
0.50*45o |
|
|
JP501675080 |
5.0 |
1.6 |
75 |
0.80 |
|
|
JP502068050 |
5.0 |
2.0 |
68 |
0.50 |
|
|
JP551560050 |
5.5 |
1.5 |
60 |
0.50*45o |
|
|
JP552069060 |
5.5 |
2.0 |
69 |
0.60 |
|
|
JP561560050 |
5.6 |
1.5 |
60 |
0.50 |
|
|
JP5817370050 |
5.8 |
1.73 |
70 |
0.50*45o |
|
|
JP581870050 |
5.8 |
1.7 |
70 |
0.50*45o |
|
|
JP582072050 |
5.8 |
2.0 |
72 |
0.50*45o |
|
|
JP591758050 |
5.9 |
1.7 |
58 |
0.50 |
|
|
JP601862060 |
6.0 |
1.8 |
62 |
0.60*45o |
|
|
JP601870050 |
6.0 |
1.8 |
70 |
0.50*45o |
|
|
JP602062060 |
6.0 |
2.0 |
62 |
0.60*45o |
|
|
JP631880050 |
6.3 |
1.8 |
80 |
0.50*45o |
|
|
JP632056050 |
6.3 |
2.0 |
56 |
0.50*45o |
|
|
JP632070040 |
6.3 |
2.0 |
70 |
0.40*60o |
|
|
JP632270050 |
6.3 |
2.2 |
70 |
0.50*60o |
|

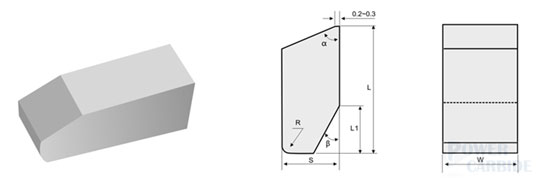

Series of JX Carbide Saw Tips
|
Type |
Dimension（mm） |
||||||
|
L |
S |
αo |
βo |
L1 |
R |
γo |
|
|
JX90306030139 |
9.0 |
3.0 |
60 |
30 |
1.39 |
0.50*45o |
|
|
JX94245018246-3o |
9.4 |
2.4 |
50 |
18 |
2.46 |
0.60*45o |
3 |
|
JX94265018277-3o |
9.4 |
2.6 |
50 |
18 |
2.77 |
0.60*45o |
3 |
|
JX95256020320 |
9.5 |
2.5 |
60 |
20 |
3.20 |
0.50 |
|
|
JX95256520206 |
9.5 |
2.5 |
65 |
20 |
2.06 |
0.50 |
|
|
JX95266720275 |
9.5 |
2.6 |
67 |
20 |
2.75 |
0.50 |
|
|
JX95286020280 |
9.5 |
2.8 |
60 |
20 |
2.80 |
0.50 |
|
|
JX95306220275 |
9.5 |
3.0 |
62 |
20 |
2.75 |
0.50 |
|
|
JX100256020320 |
10.0 |
2.5 |
60 |
20 |
3.20 |
0.50 |
|
|
JX100257023212 |
10.0 |
2.5 |
70 |
23 |
2.12 |
0.50 |
|
|
JX100286216500 |
10.0 |
2.8 |
62 |
16 |
5.00 |
0.50 |
|
|
JX100306220275 |
10.0 |
3.0 |
62 |
20 |
2.75 |
0.50*45o |
|
|
JX104295018308-3o |
10.4 |
2.9 |
50 |
18 |
3.08 |
0.60*45o |
3 |
|
JX105236025235 |
10.5 |
2.3 |
60 |
25 |
2.35 |
0.50 |
|
|
JX105256020300 |
10.5 |
2.5 |
60 |
30 |
3.00 |
0.50 |
|
|
JX105256020027 |
10.5 |
2.5 |
60 |
20 |
0.27 |
0.50 |
|
|
JX105256245120 |
10.5 |
2.5 |
62 |
45 |
1.20 |
0.50 |
|
|
JX105256220220-5o |
10.5 |
2.5 |
62 |
20 |
2.20 |
0.50 |
5 |
|
JX105306040155 |
10.5 |
3.0 |
60 |
40 |
1.55 |
0.50 |
|
|
JX105306020280 |
10.5 |
3.0 |
60 |
20 |
2.80 |
0.50 |
|
|
JX105306025300 |
10.5 |
3.0 |
60 |
25 |
3.00 |
0.50 |
|
|
JX105306030280 |
10.5 |
3.0 |
60 |
30 |
2.80 |
0.50 |
|
|
JX109245018246-3o |
10.9 |
2.4 |
50 |
18 |
2.46 |
0.60*45o |
3 |
|
JX109295018308-3o |
10.9 |
2.9 |
50 |
18 |
3.08 |
0.60*45o |
3 |
|
JX122425512800 |
12.2 |
4.2 |
55 |
12 |
8.00 |
0.50*45o |
|
|
JX122425545185 |
12.2 |
4.2 |
55 |
45 |
1.85 |
0.50*45o |
|
|
JX125306018300 |
12.5 |
3.0 |
60 |
18 |
3.00 |
0..50 |
|
|
JX125406018300 |
12.5 |
4.0 |
60 |
18 |
3.00 |
0.50 |
|
|
JX130406030300 |
13.0 |
4.0 |
60 |
30 |
3.00 |
0.50 |
|
|
JX15164076045206/5o |
15.16 |
4.07 |
60 |
45 |
2.06 |
0.50 |
5 |
|
JX160407534300 |
16.0 |
4.0 |
75 |
34 |
3.00 |
1.00 |
|
|
JX160457534300 |
16.0 |
4.5 |
75 |
34 |
3.00 |
1.00 |
|
|
JX220606034300 |
22.0 |
6.0 |
60 |
34 |
3.00 |
1.00 |
|
|
Type |
Dimension（mm） |
||||||
|
L |
S |
αo |
βo |
L1 |
R |
γo |
|
|
JX70226220201 |
7.0 |
2.2 |
62 |
20 |
2.01 |
0.50*45o |
|
|
JX70226220110 |
7.0 |
2.2 |
62 |
20 |
1.10 |
0.50 |
|
|
JX70236020160 |
7.0 |
2.3 |
60 |
20 |
1.60 |
0.50 |
|
|
JX70236015373 |
7.0 |
2.3 |
60 |
15 |
3.73 |
0.50 |
|
|
JX70236220290 |
7.0 |
2.3 |
62 |
20 |
2.90 |
0.50 |
|
|
JX70237020160 |
7.0 |
2.3 |
70 |
20 |
1.60 |
0.50 |
|
|
JX70257020180 |
7.0 |
2.5 |
70 |
20 |
1.80 |
0.50 |
|
|
JX70306030139 |
7.0 |
3.0 |
60 |
30 |
1.39 |
0.50*45o |
|
|
JX70308020330 |
7.0 |
3.0 |
80 |
20 |
3.30 |
0.50*45o |
|
|
JX72236225273 |
7.2 |
2.3 |
62 |
25 |
2.73 |
0.50 |
|
|
JX72286020315 |
7.2 |
2.8 |
60 |
20 |
3.15 |
0.50 |
|
|
JX73197020192 |
7.3 |
1.9 |
70 |
20 |
1.92 |
0.50*45o |
|
|
JX74195018185-3o |
7.4 |
1.9 |
50 |
18 |
1.85 |
0.60*45o |
3 |
|
JX74215018215-3o |
7.4 |
2.1 |
50 |
18 |
2.15 |
0.60*45o |
3 |
|
JX75206245070 |
7.5 |
2.0 |
62 |
45 |
0.70 |
0.50 |
|
|
JX75226530130 |
7.5 |
2.2 |
65 |
30 |
1.30 |
0.50 |
|
|
JX75236018300 |
7.5 |
2.3 |
60 |
18 |
3.00 |
0.50 |
|
|
JX75246020220 |
7.5 |
2.4 |
60 |
20 |
2.20 |
0.50 |
|
|
JX75246020300 |
7.5 |
2.4 |
60 |
20 |
3.00 |
0.50 |
|
|
JX75256520173 |
7.5 |
2.5 |
65 |
20 |
1.73 |
0.50 |
|
|
JX80236020200 |
8.0 |
2.3 |
60 |
20 |
2.00 |
0.50 |
|
|
JX80236015373 |
8.0 |
2.3 |
60 |
15 |
3.73 |
0.50 |
|
|
JX80236234119 |
8.0 |
2.3 |
62 |
34 |
1.19 |
0.50 |
|
|
JX80236215400 |
8.0 |
2.3 |
62 |
15 |
4.00 |
0.50 |
|
|
JX80236220220-5o |
8.0 |
2.3 |
62 |
20 |
2.20 |
0.50 |
5 |
|
JX80256015411 |
8.0 |
2.5 |
60 |
15 |
4.11 |
0.50 |
|
|
JX80256017240 |
8.0 |
2.5 |
60 |
17 |
2.40 |
0.50 |
|
|
JX80256220261 |
8.0 |
2.5 |
62 |
20 |
2.61 |
0.50*45o |
|
|
JX80256273400 |
8.0 |
2.5 |
62 |
73 |
4.00 |
0.50 |
|
|
JX80306035143 |
8.0 |
3.0 |
60 |
35 |
1.43 |
0.50*45o |
|
|
JX84225018215-3o |
8.4 |
2.2 |
50 |
18 |
2.15 |
0.60*45o |
3 |
|
JX84245018245-3o |
8.4 |
2.4 |
50 |
18 |
2.46 |
0.60*45o |
3 |
|
JX85226520247 |
8.5 |
2.2 |
65 |
20 |
2.47 |
0.50 |
|
|
JX85236020137/1.35o |
8.5 |
2.3 |
60 |
20 |
1.37 |
1.80 |
1.35 |
|
JX85236223236 |
8.5 |
2.3 |
62 |
23 |
2.36 |
0.50 |
|
|
JX85236520247-5o |
8.5 |
2.3 |
65 |
20 |
2.47 |
0.50 |
5 |
|
JX85256020200 |
8.5 |
2.5 |
60 |
20 |
2.00 |
0.50 |
|
|
JX85256020220 |
8.5 |
2.5 |
60 |
20 |
2.20 |
0.50 |
|
|
JX85256220261 |
8.5 |
2.5 |
62 |
20 |
2.61 |
0.50*45o |
|
|
JX85256245125 |
8.5 |
2.5 |
62 |
45 |
1.25 |
0.50 |
|
|
JX85256220220-5o |
8.5 |
2.5 |
62 |
20 |
2.20 |
0.50 |
5 |
|
JX85286220261 |
8.5 |
2.8 |
62 |
20 |
2.61 |
1.00*45o |
|
|
JX85287010250 |
8.5 |
2.8 |
70 |
10 |
2.50 |
1.25 |
|
|
JX85307030260 |
8.5 |
3.0 |
70 |
30 |
2.60 |
0.50*45o |
|
|
JX85356525322 |
8.5 |
3.5 |
65 |
25 |
3.22 |
0.50 |
|
|
JX88296025350 |
8.8 |
2.9 |
60 |
25 |
3.50 |
0.50 |
|
|
JX89245018246/3o |
8.9 |
2.4 |
50 |
18 |
2.46 |
0.60*45o |
3 |
|
JX90215723165 |
9.0 |
2.1 |
57 |
23 |
1.65 |
0.50 |
|
|
JX90256020320 |
9.0 |
2.5 |
60 |
20 |
3.20 |
0.50 |
|
|
JX90257033160 |
9.0 |
2.5 |
70 |
33 |
1.60 |
0.50 |
|
|
JX90276220319 |
9.0 |
2.7 |
62 |
20 |
3.19 |
0.50 |
|
|
JX90286220346 |
9.0 |
2.8 |
62 |
20 |
3.46 |
0.50 |
|
|
JX90287010250 |
9.0 |
2.8 |
70 |
10 |
2.50 |
1.25 |
|
|
JX90306020230 |
9.0 |
3.0 |
60 |
20 |
2.30 |
0.60 |
|
|
Type |
Dimension（mm） |
||||||
|
L |
S |
αo |
βo |
L1 |
R |
γo |
|
|
JX55186020130 |
5.5 |
1.8 |
60 |
20 |
1.30 |
0.50 |
|
|
JX55186520192 |
5.5 |
1.8 |
65 |
20 |
1.92 |
0.40 |
|
|
JX55187020140 |
5.5 |
1.8 |
70 |
20 |
1.40 |
0.50 |
|
|
JX55206520220 |
5.5 |
2.0 |
65 |
20 |
2.20 |
0.50 |
|
|
JX55207020150 |
5.5 |
2.0 |
70 |
20 |
1.50 |
0.50 |
|
|
JX57166020140-1 |
5.7 |
1.6 |
60 |
20 |
1.40 |
0.50*45o |
|
|
JX57166020140-2 |
5.7 |
1.6 |
60 |
20 |
1.40 |
0.50 |
|
|
JX571660218050 |
5.7 |
1.6 |
60 |
21.8 |
0.50 |
0.50 |
|
|
JX57167025086 |
5.7 |
1.6 |
70 |
25 |
0.86 |
0.50 |
|
|
JX57186520192 |
5.7 |
1.8 |
65 |
20 |
1.92 |
0.40 |
|
|
JX575286025279 |
5.75 |
2.8 |
60 |
25 |
2.79 |
0.50 |
|
|
JX58186015280 |
5.8 |
1.8 |
60 |
15 |
2.80 |
0.50 |
|
|
JX58186045075 |
5.8 |
1.8 |
60 |
45 |
0.75 |
0.40 |
|
|
JX58196025160 |
5.8 |
1.9 |
60 |
25 |
1.60 |
0.50 |
|
|
JX59145018123-3o |
5.9 |
1.4 |
50 |
18 |
1.23 |
0.60*45o |
3 |
|
JX601536020137 |
6.0 |
1.53 |
60 |
20 |
1.37 |
0.50*45o |
|
|
JX601537520137 |
6.0 |
1.53 |
75 |
20 |
1.37 |
0.50*45o |
|
|
JX60166020140 |
6.0 |
1.6 |
60 |
20 |
1.40 |
0.50 |
|
|
JX60166220165 |
6.0 |
1.6 |
62 |
20 |
1.65 |
0.50*45o |
|
|
JX601656520137 |
6.0 |
1.65 |
65 |
20 |
1.37 |
0.60 |
|
|
JX60176020140 |
6.0 |
1.7 |
60 |
20 |
1.40 |
0.50 |
|
|
JX60186020140 |
6.0 |
1.8 |
60 |
20 |
1.40 |
0.50 |
|
|
JX60186315261 |
6.0 |
1.8 |
63 |
15 |
2.61 |
0.40 |
|
|
JX60206020140 |
6.0 |
2.0 |
60 |
20 |
1.40 |
0.50 |
|
|
JX60206220242 |
6.0 |
2.0 |
62 |
20 |
2.42 |
0.50 |
|
|
JX60206819200 |
6.0 |
2.0 |
68 |
19 |
2.00 |
0.50 |
|
|
JX60286025279 |
6.0 |
2.8 |
60 |
25 |
2.79 |
0.50 |
|
|
JX62166020140 |
6.2 |
1.6 |
60 |
20 |
1.40 |
0.50 |
|
|
JX621636014155 |
6.2 |
1.63 |
60 |
14 |
1.55 |
0.50 |
|
|
JX62196020140 |
6.2 |
1.9 |
60 |
20 |
1.40 |
0.50 |
|
|
JX63196315261 |
6.3 |
1.9 |
63 |
15 |
2.61 |
0.50 |
|
|
JX63205723165 |
6.3 |
2.0 |
57 |
23 |
1.65 |
0.50 |
|
|
JX63207020190 |
6.3 |
2.0 |
70 |
20 |
1.90 |
0.50 |
|
|
JX64175018154-3o |
6.4 |
1.7 |
50 |
18 |
1.54 |
0.60*45o |
3 |
|
JX64195018215-3o |
6.4 |
1.9 |
50 |
18 |
2.15 |
0.60*45o |
3 |
|
JX651656520137 |
6.5 |
1.65 |
65 |
20 |
1.37 |
0.60 |
|
|
JX65186020140 |
6.5 |
1.8 |
60 |
20 |
1.40 |
0.50 |
|
|
JX65186235080 |
6.5 |
1.8 |
62 |
35 |
0.80 |
0.50 |
|
|
JX65206217260 |
6.5 |
2.0 |
62 |
17 |
2.60 |
0.50 |
|
|
JX65206315299 |
6.5 |
2.0 |
63 |
25 |
2.99 |
0.50 |
|
|
JX65207025150 |
6.5 |
2.0 |
70 |
25 |
1.50 |
0.50 |
|
|
JX65207020160 |
6.5 |
2.0 |
70 |
20 |
1.60 |
0.50 |
|
|
JX65216225236 |
6.5 |
2.1 |
62 |
25 |
2.36 |
0.50 |
|
|
JX65216817250 |
6.5 |
2.1 |
68 |
17 |
2.50 |
0.50 |
|
|
JX65226020160 |
6.5 |
2.2 |
60 |
20 |
1.60 |
0.50 |
|
|
JX65236030087 |
6.5 |
2.3 |
60 |
30 |
0.87 |
0.50*45o |
|
|
JX67206020160 |
6.7 |
2.0 |
60 |
20 |
1.60 |
0.50 |
|
|
JX691750187154/3o |
6.9 |
1.7 |
50 |
18 |
1.54 |
0.60*45o |
3 |
|
JX70166020110 |
7.0 |
1.6 |
60 |
20 |
1.10 |
0.50*45o |
|
|
JX70186020165 |
7.0 |
1.8 |
60 |
20 |
1.65 |
0.50*45o |
|
|
JX70186020137/2o |
7.0 |
1.8 |
60 |
20 |
1.37 |
1.20 |
2 |
|
JX70206020160 |
7.0 |
2.0 |
60 |
20 |
1.60 |
0.50 |
|
|
JX70225723188 |
7.0 |
2.2 |
57 |
23 |
1.88 |
0.50 |
|
|
Type |
Dimension（mm） |
||||||
|
L |
S |
αo |
βo |
L1 |
R |
γo |
|
|
JX301560113100/4o |
3.0 |
1.5 |
60 |
11.3 |
1.00 |
0.50 |
4 |
|
JX40126520110 |
4.0 |
1.2 |
65 |
20 |
1.10 |
0.30 |
|
|
JX43146315140 |
4.3 |
1.4 |
63 |
15 |
1.40 |
0.50 |
|
|
JX45146020100 |
4.5 |
1.4 |
60 |
20 |
1.00 |
0.50 |
|
|
JX45146520151 |
4.5 |
1.4 |
65 |
20 |
1.51 |
0.30 |
|
|
JX45156027100 |
4.5 |
1.5 |
60 |
27 |
1.00 |
0.50 |
|
|
JX45156245080 |
4.5 |
1.5 |
62 |
45 |
0.80 |
0.50 |
|
|
JX45156520096 |
4.5 |
1.5 |
65 |
20 |
0.96 |
0.30 |
|
|
JX45157515110 |
4.5 |
1.5 |
75 |
15 |
1.10 |
0.50 |
|
|
JX45207517160 |
4.5 |
2.0 |
75 |
17 |
1.60 |
0.50 |
|
|
JX46156027100 |
4.6 |
1.5 |
60 |
27 |
1.00 |
0.50 |
|
|
JX48146520151 |
4.8 |
1.4 |
65 |
20 |
1.51 |
0.30 |
|
|
JX48156520165 |
4.8 |
1.5 |
65 |
20 |
1.65 |
0.30 |
|
|
JX48166520179 |
4.8 |
1.6 |
65 |
20 |
1.79 |
0.40 |
|
|
JX48167730069 |
4.8 |
1.6 |
77 |
30 |
0.69 |
0.50*45o |
|
|
JX49145018123-3o |
4.9 |
1.4 |
50 |
18 |
1.23 |
0.60*45o |
3 |
|
JX50146520151 |
5.0 |
1.4 |
65 |
20 |
1.51 |
0.30 |
|
|
JX50155515149 |
5.0 |
1.5 |
55 |
15 |
1.49 |
0.50 |
|
|
JX50156019150 |
5.0 |
1.5 |
60 |
19 |
1.50 |
0.50 |
|
|
JX50156520165 |
5.0 |
1.5 |
65 |
20 |
1.65 |
0.30 |
|
|
JX50157030087 |
5.0 |
1.5 |
70 |
30 |
0.87 |
0.50 |
|
|
JX50157020150 |
5.0 |
1.5 |
70 |
20 |
1.50 |
0.50 |
|
|
JX501535520137 |
5.0 |
1.53 |
55 |
20 |
1.37 |
0.50*45o |
|
|
JX50166520179 |
5.0 |
1.6 |
65 |
20 |
1.79 |
0.40 |
|
|
JX50166520132 |
5.0 |
1.6 |
65 |
20 |
1.32 |
0.50 |
|
|
JX501668155180 |
5.0 |
1.6 |
68 |
15.5 |
1.80 |
0.50 |
|
|
JX50167020140 |
5.0 |
1.6 |
70 |
20 |
1.40 |
0.50 |
|
|
JX50167520140 |
5.0 |
1.6 |
75 |
20 |
1.40 |
0.50 |
|
|
JX501656520137 |
5.0 |
1.65 |
65 |
20 |
1.37 |
0.60 |
|
|
JX50176520192 |
5.0 |
1.7 |
65 |
20 |
1.92 |
0.40 |
|
|
JX50187020140 |
5.0 |
1.8 |
70 |
20 |
1.40 |
0.50 |
|
|
JX50207530087 |
5.0 |
2.0 |
75 |
30 |
0.87 |
0.30*45o |
|
|
JX51167020150 |
5.1 |
1.6 |
70 |
20 |
1.50 |
0.50 |
|
|
JX52166520179 |
5.2 |
1.6 |
65 |
20 |
1.79 |
0.40 |
|
|
JX52176520192 |
5.2 |
1.7 |
65 |
20 |
1.92 |
0.40 |
|
|
JX52177020140 |
5.2 |
1.7 |
70 |
20 |
1.40 |
0.50 |
|
|
JX53156020130 |
5.3 |
1.5 |
60 |
20 |
1.30 |
0.50 |
|
|
JX53157020150 |
5.3 |
1.5 |
70 |
20 |
1.50 |
0.50 |
|
|
JX53166520179 |
5.3 |
1.6 |
65 |
20 |
1.79 |
0.40 |
|
|
JX53176520192 |
5.3 |
1.7 |
65 |
20 |
1.92 |
0.40 |
|
|
JX53186520192 |
5.3 |
1.8 |
65 |
20 |
1.92 |
0.40 |
|
|
JX53187045180 |
5.3 |
1.8 |
70 |
45 |
1.80 |
0.30 |
|
|
JX54145018123-3o |
5.4 |
1.4 |
50 |
18 |
1.23 |
0.60*45o |
3 |
|
JX54176020130 |
5.4 |
1.7 |
60 |
20 |
1.30 |
0.50 |
|
|
JX54177020140 |
5.4 |
1.7 |
70 |
20 |
1.40 |
0.50 |
|
|
JX55157520192/5o |
5.5 |
1.5 |
75 |
20 |
1.92 |
0.50 |
5 |
|
JX55167020140 |
5.5 |
1.6 |
70 |
20 |
1.40 |
0.50 |
|
|
JX551656520137 |
5.5 |
1.65 |
65 |
20 |
1.37 |
0.60 |
|
|
JX55175325129 |
5.5 |
1.7 |
53 |
25 |
1.29 |
0.50*45o |
|
|
JX55176020140 |
5.5 |
1.7 |
60 |
20 |
1.40 |
0.50 |
|
|
JX55176017170 |
5.5 |
1.7 |
60 |
17 |
1.70 |
0.50 |
|
|
JX55176021200 |
5.5 |
1.7 |
60 |
21 |
2.00 |
0.50 |
|
|
JX55176520192 |
5.5 |
1.7 |
65 |
20 |
1.92 |
0.40 |
|
|
JX55177020140 |
5.5 |
1.7 |
70 |
20 |
1.40 |
0.50 |
|
Related Products
Categories
- Solid Carbide Wood Cutters
- Precision Balls & Seats
- Carbide Circular Blades
- Carbide Rods & Endmills
- Precision Blades
- Fiber Cutter Blades
- Tungsten Carbide Inserts
- Carbide Strip & Plate
- Carbide Saw Tips & Blades
- Tungsten Carbide Mold
- Carbide Mining Tool
- Carbide Customized Part
- Carbide Tipped Work Rest Blade
Latest News
- Pure Tungsten Rods2017-10-19
- Tungsten Carbide Bars for Vsi Crusher2017-10-19
- PCD/CBN Indexable inserts with Tungsten Carbide Substrate2017-10-19
Contact Us
Contact: Andy
Phone: 0086-0731-22282989
Tel: 0086-0731-22282989
E-mail: sales@powercarbide.com
Add: Zhuzhou, Hunan, China
PowerCarbide
Power Carbide
